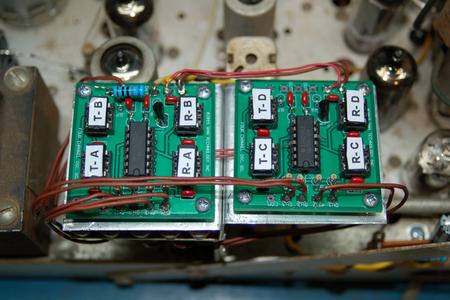

Boards added to chassis

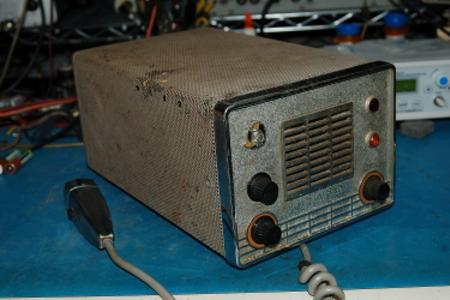

Johnson Viking Messenger: Re-conditioned and upgraded to 10 Meters
This CB transceiver was first made function on the CB band by replacing all the bad capacitors, resistors and tubes where necessary and tuned up.
Next an alternative was found ( boards / ICs ) to replace the crystals since this unit has one set of 5 crystals for the receive side and one set of crystals for the transmit side. They are are spaced apart at 455 KHz for the IF stage. The boards were found on this site: Hayseedhamfest.com and the IC’s for these boards are available from Digikey.
The ICs are solid state replacement devices that are programmed at one frequency when purchased and are placed on two boards purchased at the above site. Each board handles 4 devices, so two boards were purchased to create 4 transmit and 4 receive frequencies.

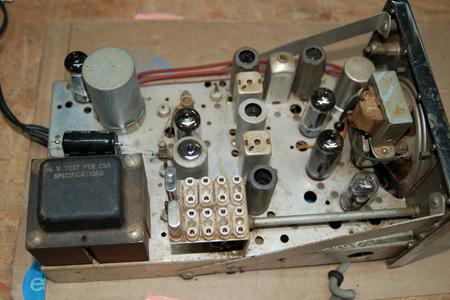

Original chassis
